Package and Deploy tool not showing newly deployed workflows

Issue

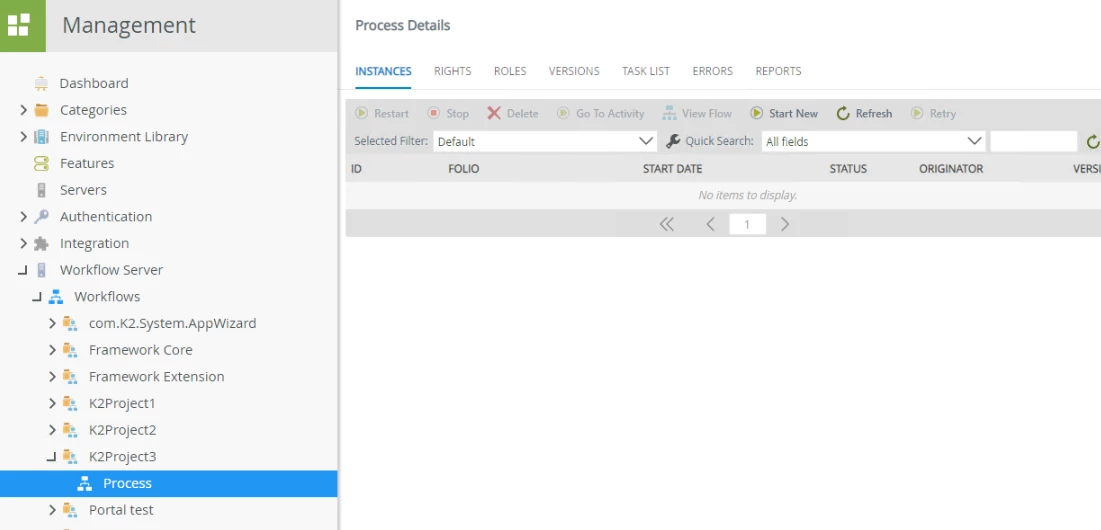

The workflow is showing in K2 Management correctly:

Error Code

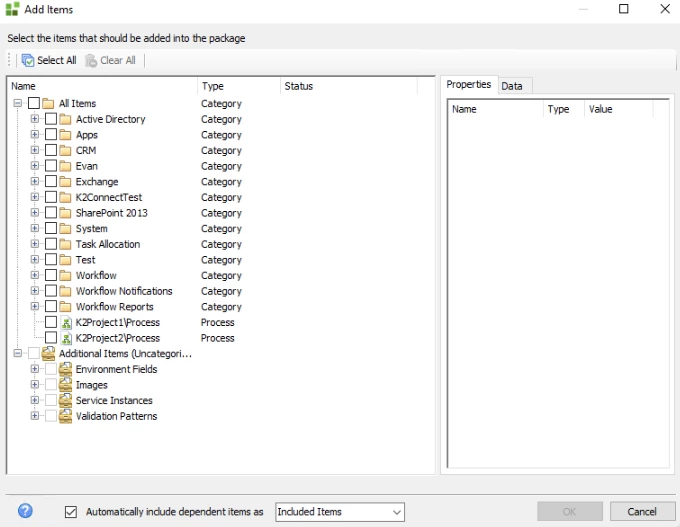

In this case, workflow "K2Project3Process" is not showing in P&D:

Resolution

The issue could be caused by <DeployToCategory> key in kprx file is set to 0.

Setting this key to 1 and redeploy the workflow will resolve the issue.

Additional Information

https://help.nintex.com/en-US/k2five/userguide/5.4/default.htm#LegacyDesigntools/Legacy-Designers.htm?Highlight=studio

Related Links

https://help.nintex.com/en-US/k2five/userguide/5.4/default.htm#PackageAndDeploy/Package-and-Deploy.htm?TocPath=Create%257CDeploying%2520K2%2520applications%257C_____0
