Repeating Section not returning values

  • December 7, 2019
  • 5 replies
  • 19 views
Forum|alt.badge.img+1



I'm new to nintex so please bare with me!

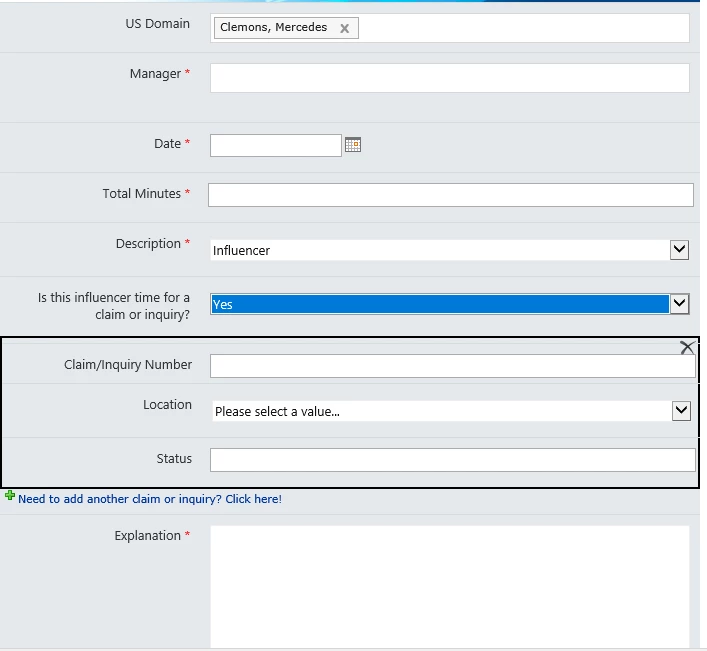

I have a form that requires a repeating section. My experience with repeating sections has primarily been with infopath, but this is an entirely different ball game. Within the repeating section, there are three fields: claim number (Single text), location (Dropdown), and status (Single text).




























I downloaded the UDA and workflow from http://www.vadimtabakman.com/nintex-formsworkflow-parsing-repeating-section-data.aspx and altered the variables. While testing the workflow, the following error was returned:

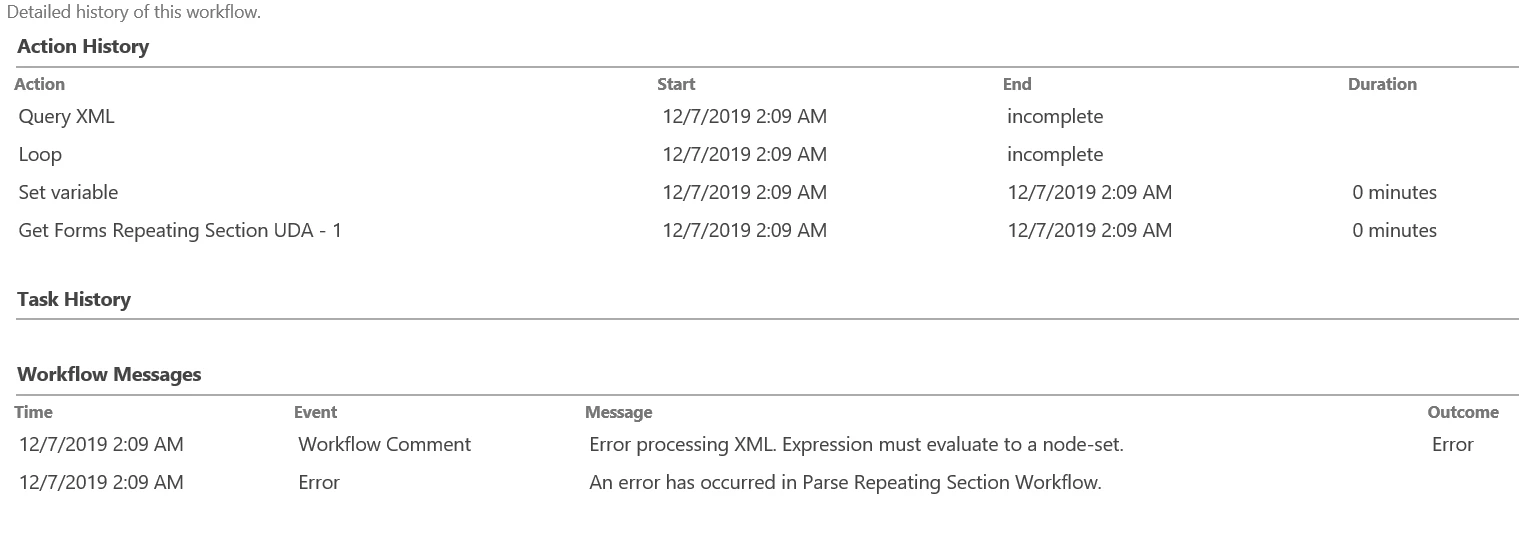

"Error processing XML. Expression must evaluate to a node-set." (image below)














I'm assuming that there is an issue with the Query XML action.

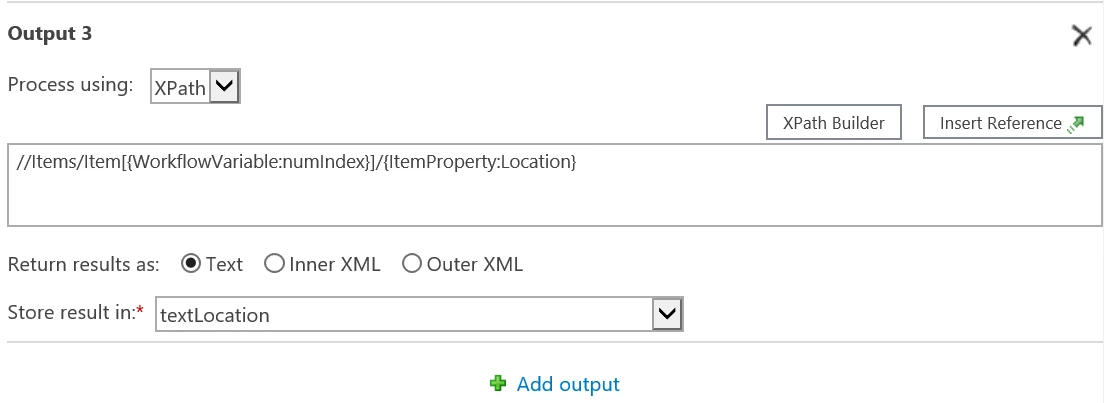

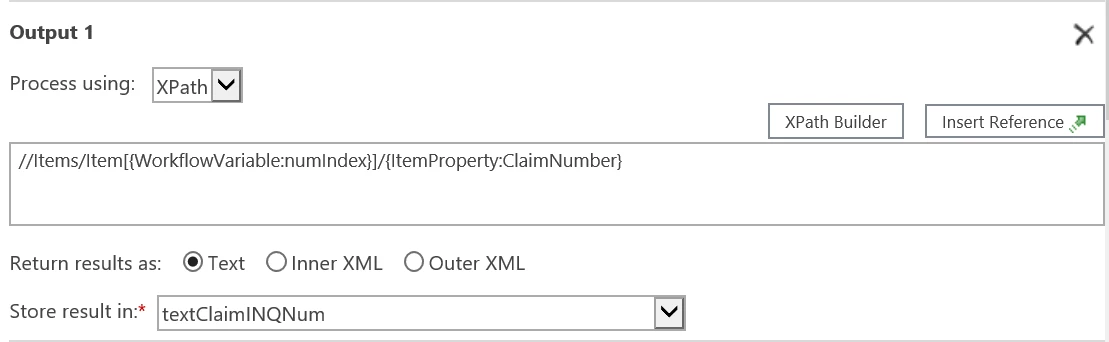

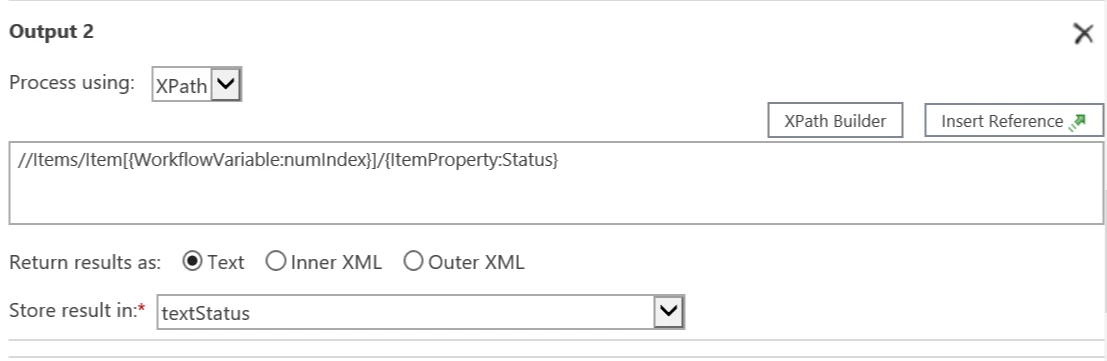

Here is what I have configured for this action.



5851iCE95CCDF8CBEF30F.png5852iC6EE9B6CAC28772B.png5853i70477CA261B087C4.png5854i99939D3E50A94D46.png



































I'm unsure of where I went wrong or how to correct the issue.

@vadim_tabakman  - I would greatly appreciate your help with this!



    5 replies

    Simon Muntz
    Nintex Partner
    Forum|alt.badge.img+23
    • Simon MuntzNintex Partner
    • Nintex Partner
    • December 8, 2019
    Hi

    Your xpath query should not be using the item property. The name of the control is all you need.
    We provide Nintex Training & Consulting - https://www.definiti.com.au/
    Forum|alt.badge.img+12
    • kunalpatel
    • Scholar
    • December 9, 2019

    @cedes2014 ....Instead of UDA, I think attaching RepSec with MLT (plain text) column will be more simple and easy to manage.

    Forum|alt.badge.img+1
    • cedes2014
    • Author
    • December 12, 2019

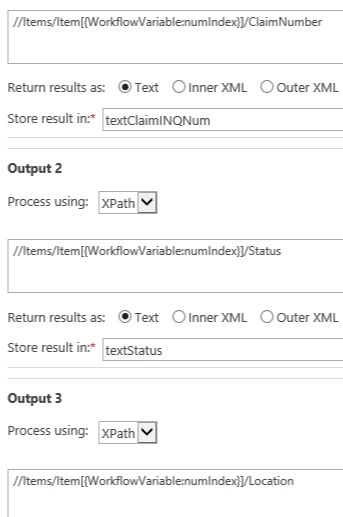

    In one of the forums I was following it had the expressions set up as such. I forgot to change it back before I took screenshots. This is what they look like now.




    Forum|alt.badge.img+1
    • cedes2014
    • Author
    • December 12, 2019

    Its to my understanding that if I were to use MLT, it would place all data into one field and show as one record. That would be easier, however, it would not capture the data as I need it to. Each claim/INQ number identified has to be documented in seperate records.



    When I remove the repeating section the form works just fine, however, there are instances where a user may need to document more than one claim/INQ on a form. Having to submit a new form for each claim/INQ will be time consuming.





    Forum|alt.badge.img+12
    • kunalpatel
    • Scholar
    • December 12, 2019

    @cedes2014 ....when you connect your RepSec with MLT (plain text) it stores the XML code of your repeating section. Using Query XML w/f action and this MLT as a source you can get values as a collections. Using Update XML, you can update existing rows or add or delete rows too.
