My Call web service XML is not working with GetListItems method

Thanks for responding @SimonMuntz. Surprisingly, yes as I find them a little mystifying. I was tinkering around with the tutorial here when researching how to use these and got the web service part of this one working well. I have not gotten to the report formatted email part yet but I was able to prove that I can use a web service. Also, I am a site collection admin. Did you see anything amiss?

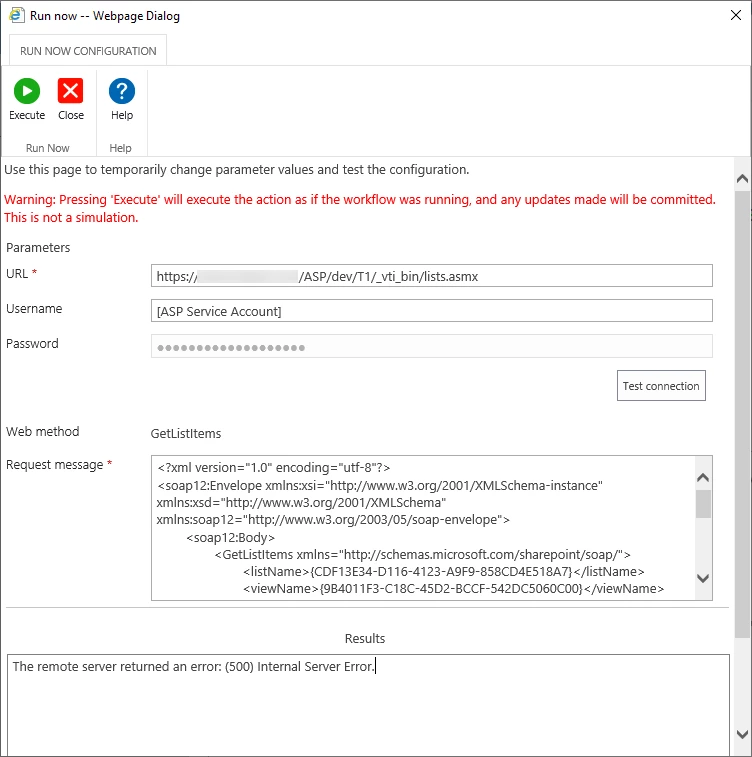

Here is the error in preview (connection test was OK).

Thansk and Regards,

Patrick

UPDATE...

Hi @SimonMuntz,

With the help of a colleague, @omalleyrp, we have it connecting with output. It still does not do what I need but here is what we did.

...The URL needed to be literal and not referenced as the target list was on another site in the site collection.

...Also, I wanted to return only the ID field value from the target list item. I used the <viewFields></viewFields> tag and put ID, "ID", and 'ID' between, each with the 500 error as a result.

Here is my current working XML...

<?xml version="1.0" encoding="UTF-8"?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
   <soap:Body>
      <GetListItems xmlns="http://schemas.microsoft.com/sharepoint/soap/">
         <listName>tbl_Westerners</listName>
         <viewName />
         <query>
            <Query>
               <Where>
                  <Eq>
                     <FieldRef Name="UserID" />
                     <Value Type="Text">{WorkflowVariable:var_CreatedByUserID_TXT}</Value>
                  </Eq>
               </Where>
            </Query>
         </query>
         <viewFields></viewFields>
         <rowLimit />
         <queryOptions xmlns:SOAPSDK9="http://schemas.microsoft.com/sharepoint/soap/">
            <QueryOptions />
         </queryOptions>
         <webID />
      </GetListItems>
   </soap:Body>
</soap:Envelope>

Here is the output from my preview test...

<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <soap:Body>
    <GetListItemsResponse xmlns="http://schemas.microsoft.com/sharepoint/soap/">
      <GetListItemsResult>
        <listitems xmlns:s="uuid:BDC6E3F0-6DA3-11d1-A2A3-00AA00C14882" xmlns:dt="uuid:C2F41010-65B3-11d1-A29F-00AA00C14882" xmlns:rs="urn:schemas-microsoft-com:rowset" xmlns:z="#RowsetSchema">
          <rs:data ItemCount="0"></rs:data>
        </listitems>
      </GetListItemsResult>
    </GetListItemsResponse>
  </soap:Body>
</soap:Envelope>

...and here is the output from run against an item that I authored (some redaction used)...

<?xml version="1.0" encoding="UTF-8"?>
<listitems xmlns="http://schemas.microsoft.com/sharepoint/soap/" xmlns:dt="uuid:C2F41010-65B3-11d1-A29F-00AA00C14882" xmlns:rs="urn:schemas-microsoft-com:rowset" xmlns:s="uuid:BDC6E3F0-6DA3-11d1-A2A3-00AA00C14882" xmlns:z="#RowsetSchema">
   <rs:data ItemCount="1">
      <z:row
		ows_ID="34"
		ows_Field1="34.0000000000000"
		ows_EmpID="*****" o
		ws_FirstName="*****"
		ows_LastName="*****"
		ows_MiddleInitial="*"
		ows_FullName="*****, *****"
		ows_LeidosEmail="*****.*.*****@*****.com"
		ows_AKOEmail="*****.*.*****.***@***.mil"
		ows_UserID="*****"
		ows_EmpIsSupervisor="1"
		ows_Gender="Male"
		ows_StartDate="2010-08-30 00:00:00"
		ows_FPCard="1"
		ows_HomeOfRecord="*****, NC"
		ows_KuwaitDL="0"
		ows_HeavyDL="0"
		ows_PickupDL="0"
		ows_IssuedPhone="0"
		ows_CellNumber="***-***-****"
		ows_IssuedLaptop="0"
		ows_Active="1"
		ows_Status="PDY"
		ows_Clearance="2.00000000000000"
		ows_Org="1.00000000000000"
		ows_Position="18.0000000000000"
		ows_Section="6.00000000000000"
		ows_Supervisor="81.0000000000000"
		ows_CAC_YesNo="0"
		ows_LinkToWAD="https://*****.*****.com/ASP/_layouts/FormServer.aspx?XmlLocation=/ASP/WorkAuthDoc/WAD_*****_*****-*****_*****_26June2016.xml&amp;OpenIn=browser"
		ows_NewFlag="1.00000000000000"
		ows_ContractName="ASP"
		ows_PhysicalLocation="*****, NC"
		ows_ContractExpDate="2020-02-29 00:00:00"
		ows_TimeBank="1"
		ows_LastPaidAirfare="2014-06-02 00:00:00"
		ows_SharePointEditor="*****, ***** *."
		ows_SharePointAuthor="*****, *****"
		ows_SharePointModifiedDate="2015-11-19 23:25:00"
		ows_SharePointCreatedDate="2014-04-03 17:56:00"
		ows__Level="1"
		ows_MetaInfo="34;#"
		ows_owshiddenversion="149"
		ows_Created="2015-11-23 22:11:35"
		ows_PermMask="0x7fffffffffffffff"
		ows_FileRef="34;#ASP/PMO/AdminWebDB/Lists/tbl_Westerners/34_.000"
		ows__ModerationStatus="0"
		ows_UniqueId="34;#{677AB0AA-30E5-4454-85C8-7274C3A3C326}"
		ows_FSObjType="34;#0"
		ows_Created_x0020_Date="34;#2015-11-23 22:11:35"
		ows_Modified="2019-12-19 19:38:59"
		ows_FileLeafRef="34;#34_.000" />
   </rs:data>
</listitems>

What I ultimatly need to return is the 34 (in this example) that shows up in ows_ID="34".

Am I misunderstanding the use of the <viewFields></viewFields> tag? If so, what is the correct/best sterategy to parse my needed value out of the output XML?

Thanks and Regards,

Patrick

With the help of @TomaszPoszytek in the post Query XML Error: Invalid Token I was able to bring this Call Web Service to a successful conclusion! Thanks to Tomasz and @omalleyrp for helping me get this done. Could not have done it without you both! Bob... If you past something here I will award the solution to you as Tomasz has the award in the othert post. Thanks again!

Great news, glad it worked out for you!
